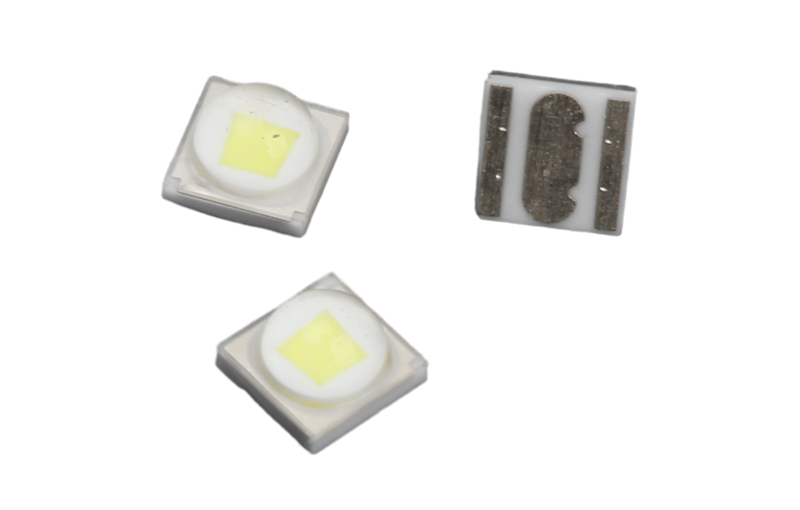

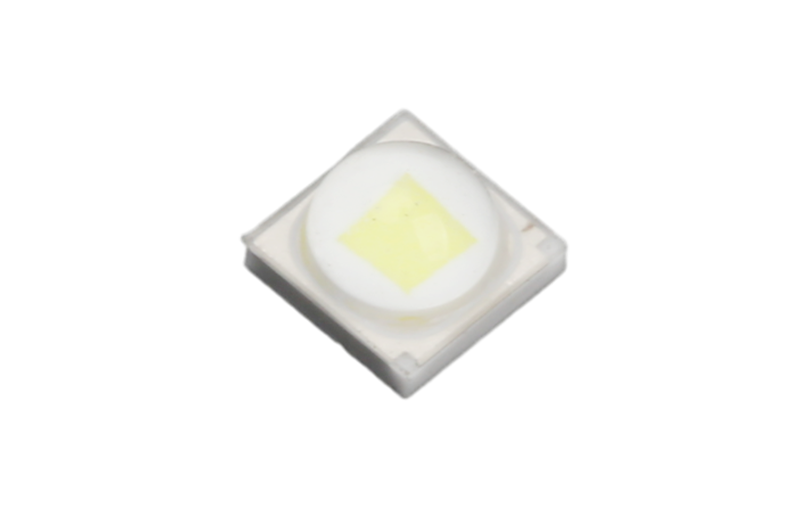

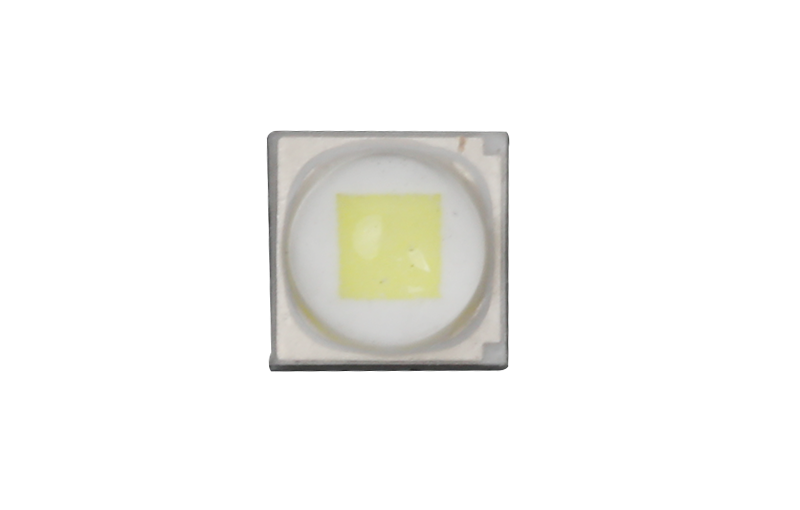

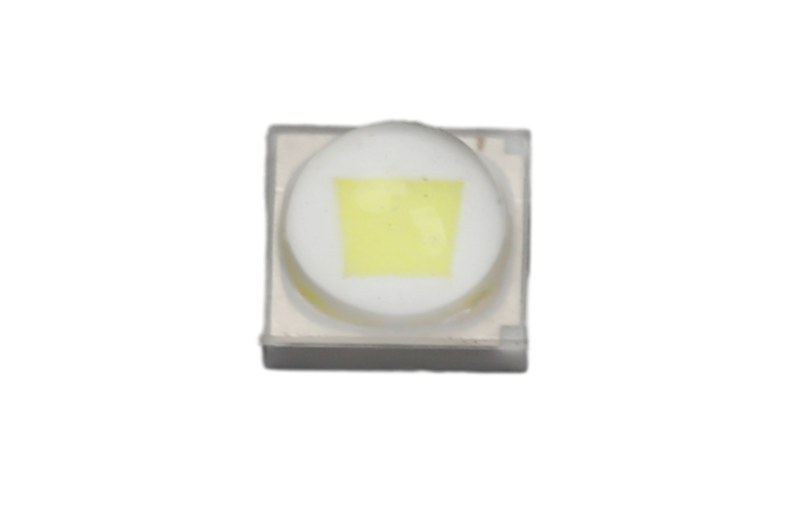

3W 3535 ceramic cool white_Shenzhen SANYI ANTECH Electronics Co.,Ltd

Street lights, tunnel lights, industrial and mining lights, etc.

Floodlights, floodlights, etc.

Other special lighting

Low light decay: 1000 hours < 3%

Long life: normal use > 50000H

Flat light

Download

Specification	Product Number	Glow Color	Color Temperature	Lumens(Lm)	Input Current(MA)	Input Voltage(V)	Serial Parallel Mode
3W	SY-H3WXXWWF1 SY-H3WXNWF1 SY-H3WXXWF1	Warm White Nature White White	2800-3200K 4000-4500K 6000-6500K	300-390 300-390 300-390	350mA	9-11V	3 series 1 parallel (3S1P)
5W	SY-H5WXXWWF1 SY-H5WXXNWF1 SY-H5WXXWF1	Warm White Nature White White	2800-3200K 4000-4500K 6000-6500K	500-650 500-650 500-650	350mA	15-18V	5 series 1 parallel (5S1P)
7W	SY-H7WXXWWF1 SY-H7WXXNWF1 SY-H7WXXWF1	Warm White Nature White White	2800-3200K 4000-4500K 6000-6500K	700-910 700-910 700-910	350mA	21-25V	7 series 1 parallel (7S1P)
10W	SY-H10WXXWWF1 SY-H10WXXNWF1 SY-H10WXXWF1	Warm White Nature White White	2800-3200K 4000-4500K 6000-6500K	900-1170 900-1170 900-1170	350mA	27-30V	9 series 1 parallel (9S1P)
10W	SY-H10WXXWWF3 SY-H10WXXNWF3 SY-H10WXXWF3	Warm White Nature White White	2800-3200K 4000-4500K 6000-6500K	1000-1300 1000-1300 1000-1300	1050mA	30-34V	3 series 3 parallel (3S3P)

Note: Specifications, luminous color, luminous flux, serial parallel mode can be customized according to customer requirements.
